Quickly Building DBIx::Class Schemas

dbicdump - 2017-12-21

Chestnut Emberflakes had been put in charge of solving a big problem at the North Pole. Several deliveries this year had failed to be delivered and he had to write a tool to store these few thousand orders in a database so Santa could make another quick orbit of the planet to re-deliver all those things he'd missed.

Chestnut only had until the first orbit had been completed to build his tool. He didn't have time to hand craft each and every SQL statement, but neither did he have time to write - and rewrite as he made changes - a bunch of class files for DBIx::Class so he could have it act as a ORM for him.

The Wise Old Elf was very busy as always on Christmas Eve, but he had enough time to part some quick advice: "Let the code build the code for you". Chestnut wasn't sure what that meant, but he'd be sure to figure it out soon.

What Emberflakes Had To Model

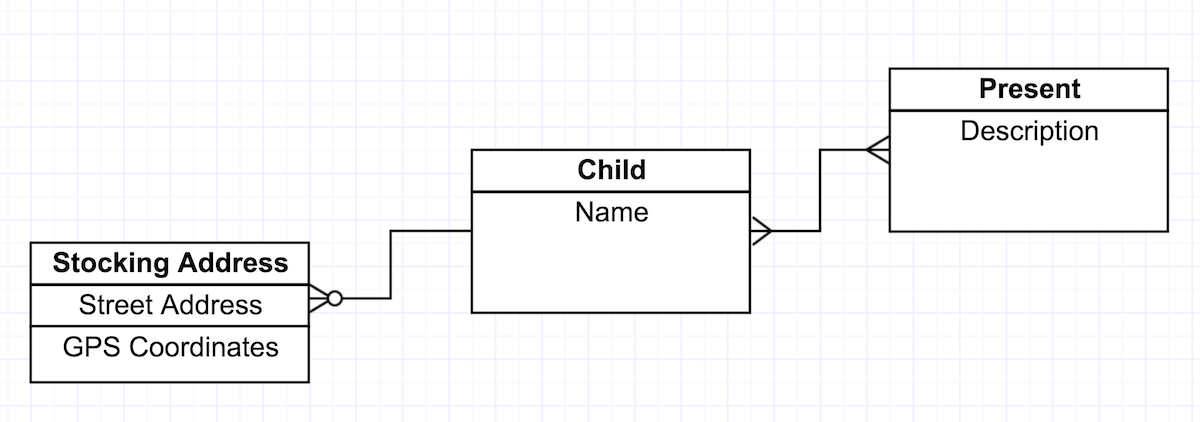

The requirements for the database model cold be summed up by this entity relationship diagram.

Entity Relationship Diagram

In short:

  • Each child would receive one or more named presents

  • Likewise each brand of present could be given to any number of children

  • Each child could have an address associated with them where the presents would be delivered (though some children sadly wouldn't have an address and Santa would have to use some ingenuity there instead)

  • Each address could have any number of children at it

The SQL

Chestnut quickly knocked up some SQL to create a Postgres database. This prototype didn't have to be perfect - he wasn't trying too hard to get all the types right in the most efficient manner, but just get this done.

DROP DATABASE IF EXISTS prototype;
CREATE DATABASE prototype;

\c prototype;

CREATE TABLE stocking_address (
    stocking_address_id UUID NOT NULL,
    street_address TEXT NOT NULL,
    lat float,
    lon float
);

ALTER TABLE ONLY stocking_address
    ADD CONSTRAINT stocking_address_pkey
    PRIMARY KEY (stocking_address_id);

CREATE TABLE child (
    child_id UUID NOT NULL,
    stocking_address_id UUID,
    name TEXT NOT NULL
);

ALTER TABLE ONLY child
    ADD CONSTRAINT child_pkey
    PRIMARY KEY (child_id);

ALTER TABLE ONLY child
    ADD CONSTRAINT child_stocking_address_id_fkey
    FOREIGN KEY (stocking_address_id)
    REFERENCES  stocking_address(stocking_address_id)
    DEFERRABLE;

CREATE TABLE present (
    present_id UUID NOT NULL,
    description TEXT NOT NULL
);

ALTER TABLE ONLY present
    ADD CONSTRAINT present_pkey
    PRIMARY KEY (present_id);

CREATE TABLE child_presents (
    child_id UUID NOT NULL,
    present_id UUID NOT NULL
);

ALTER TABLE ONLY child_presents
    ADD CONSTRAINT child_presents_pkey
    PRIMARY KEY (child_id, present_id);

ALTER TABLE ONLY child_presents
    ADD CONSTRAINT child_idfkey
    FOREIGN KEY (child_id)
    REFERENCES  child(child_id)
    DEFERRABLE;

ALTER TABLE ONLY child_presents
    ADD CONSTRAINT present_idfkey
    FOREIGN KEY (present_id)
    REFERENCES  present(present_id)
    DEFERRABLE;

He'd at least spent the time writing in the foreign key constraints. He didn't have much time to spare, but he had even less time to spare debugging his database if he didn't stop junk being put in their by mistake!

Chestnut quickly setup the database on his dev machine:

    bash$ psql < database.sql
    DROP DATABASE
    CREATE DATABASE
    You are now connected to database "prototype" as user "Chestnut".
    CREATE TABLE
    ALTER TABLE
    CREATE TABLE
    ALTER TABLE
    ALTER TABLE
    CREATE TABLE
    ALTER TABLE
    CREATE TABLE
    ALTER TABLE
    ALTER TABLE
    ALTER TABLE

Building The ORM Classes Automatically

Emberflakes was just about to call out to see if anyone would help him when the Wise Old Elf snatched away his keyboard and typed something.

    bash$ dbicdump -o dump_directory=./lib \
        Prototype::Schema 'dbi:Pg:dbname=prototype;host=127.0.0.1;port=5432'

And ran away. Emberflames was left staring at the message on his screen:

    Dumping manual schema for Prototype::Schema to directory ./lib ...
    Schema dump completed.

What the huh? With no one to explain what had just happened Chestnut figured he better peek inside the lib directory.

    bash$ find .
    find .
    .
    ./lib
    ./lib/Prototype
    ./lib/Prototype/Schema
    ./lib/Prototype/Schema/Result
    ./lib/Prototype/Schema/Result/Child.pm
    ./lib/Prototype/Schema/Result/ChildPresent.pm
    ./lib/Prototype/Schema/Result/Present.pm
    ./lib/Prototype/Schema/Result/StockingAddress.pm
    ./lib/Prototype/Schema.pm

Ooooh. It'd all been written for him. Opening up one of the files shows all the code.

use utf8;
package Prototype::Schema::Result::Child;

# Created by DBIx::Class::Schema::Loader
# DO NOT MODIFY THE FIRST PART OF THIS FILE

=head1 NAME

Prototype::Schema::Result::Child

=cut

use strict;
use warnings;

use base 'DBIx::Class::Core';

=head1 TABLE: C<child>

=cut

__PACKAGE__->table("child");

=head1 ACCESSORS

=head2 child_id

  data_type: 'uuid'
  is_nullable: 0
  size: 16

=head2 stocking_address_id

  data_type: 'uuid'
  is_foreign_key: 1
  is_nullable: 1
  size: 16

=head2 name

  data_type: 'text'
  is_nullable: 0

=cut

__PACKAGE__->add_columns(
  "child_id",
  { data_type => "uuid", is_nullable => 0, size => 16 },
  "stocking_address_id",
  { data_type => "uuid", is_foreign_key => 1, is_nullable => 1, size => 16 },
  "name",
  { data_type => "text", is_nullable => 0 },
);

=head1 PRIMARY KEY

=over 4

=item * L</child_id>

=back

=cut

__PACKAGE__->set_primary_key("child_id");

=head1 RELATIONS

=head2 child_presents

Type: has_many

Related object: L<Prototype::Schema::Result::ChildPresent>

=cut

__PACKAGE__->has_many(
  "child_presents",
  "Prototype::Schema::Result::ChildPresent",
  { "foreign.child_id" => "self.child_id" },
  { cascade_copy => 0, cascade_delete => 0 },
);

=head2 stocking_address

Type: belongs_to

Related object: L<Prototype::Schema::Result::StockingAddress>

=cut

__PACKAGE__->belongs_to(
  "stocking_address",
  "Prototype::Schema::Result::StockingAddress",
  { stocking_address_id => "stocking_address_id" },
  {
    is_deferrable => 0,
    join_type     => "LEFT",
    on_delete     => "NO ACTION",
    on_update     => "NO ACTION",
  },
);

=head2 presents

Type: many_to_many

Composing rels: L</child_presents> -> present

=cut

__PACKAGE__->many_to_many("presents", "child_presents", "present");


# Created by DBIx::Class::Schema::Loader v0.07043 @ 2017-12-20 18:03:02
# DO NOT MODIFY THIS OR ANYTHING ABOVE! md5sum:fvT7p0SmZa93Fop9i10jyA


# You can replace this text with custom code or comments, and it will be preserved on regeneration
1;

There's a lot to digest in that code. The important thing to remember was that no human (or elf) had to write any of it. And if any changes were made to the schema then it was possible to regenerate this file by simply re-running the command (regenerating the file won't overwrite or lose any additional code any elf has added below the DO NOT MODIFY THIS OR ANYTHING ABOVE LINE.)

Loading Test Data

Emberflakes decided that he'd better experiment with what was going on in the database, so he wrote a bunch of test data as JSON files to create some test fixtures.

    fixtures/StockingAddress.json:
    [
        {
            "stocking_address_id": "db1e1ce1-bc05-4931-b79f-4356ea6270ff",
            "street_address": "671 Lincoln Ave. Winnetka, Illinois",
            "lat": -87.7358245,
            "lon": 42.109756
        }
    ]

    fixtures/Present.json:
    [
        {
            "present_id": "a9c15d33-b157-4513-9638-926d7793fdb1",
            "description": "BB Gun"
        },
        {
            "present_id": "d321221e-6f1e-41ec-82b2-bda7d4783569",
            "description": "Micro Machines"
        },
        {
            "present_id": "108bebb9-871b-45a6-b4e0-36fc720b2165",
            "description": "Blowtorch"
        }
    ]

    fixtures/Child.json:
    [
        {
            "child_id": "f69eaf6c-bf77-4b29-9eca-78cda6fd2db7",
            "name": "Kevin McCallister",
            "stocking_address_id": "db1e1ce1-bc05-4931-b79f-4356ea6270ff",
            "child_presents": [
                { "present_id": "a9c15d33-b157-4513-9638-926d7793fdb1" },
                { "present_id": "d321221e-6f1e-41ec-82b2-bda7d4783569" },
                { "present_id": "108bebb9-871b-45a6-b4e0-36fc720b2165" }
            ]
        }
    ]

Reading these files in and using them to populate the database is fairly straight forward:

#!/usr/bin/perl

use v5.22;
use warnings;
use lib qw(lib);

use JSON::PP qw( decode_json );
use Path::Tiny qw( path );
use Prototype::Schema;

# connect to the database
my $schema = Prototype::Schema->connect(
    'dbi:Pg:dbname=prototype;host=127.0.0.1;port=5432',
);

$schema->txn_do(sub {
    # run with constraints disabled until the end of a transaction so we
    # don't have to worry about the order in which we're inserting
    # fixtures into the database
    $schema->storage->dbh->do('SET CONSTRAINTS ALL DEFERRED');

    # for each json file
    for my $file ( grep { /[.]json$/ } path('fixtures')->children ) {
        # decode the json file
        my $ds = decode_json( path( $file )->slurp );

        # turn fixtures/Foo.json to Foo
        my $name = path( $file )->basename('.json');

        # get the result set
        my $rs = $schema->resultset($name);

        # and insert each json object into the database
        for my $row (@{ $ds }) {
            $rs->create( $row );
        }
    }
});

Since the database schema that Emberflakes had designed had DEFERRABLE constraints it's possible to use SET CONSTRAINTS ALL DEFERRED to allow inserting incomplete foreign key data into the database, as long as when the transaction ends all the foreign keys are in place. If we didn't do this

There's another thing worth noticing: Did you spot that there's no ChildPresent.json file? If you look closely at the Child.json file you'll notice that the child_presents field isn't actually a normal database field at all but the name of a DBIx::Class relationship - and DBIx::Class will take the array of objects that it contains and used them to create related objects for us.

Playing Around with the data

More than anything Chestnut Emberflakes just needed to get to grips with the database schema. What better way to try it out than to use it interactively?

Chestnut fired up the reply, the Perl REPL:

    bash$ reply -Ilib -MPrototype::Schema
    0> my $schema = Prototype::Schema->connect('dbi:Pg:dbname=prototype;host=127.0.0.1;port=5432'); 1
    $res[0] = 1

    1> my $child_rs = $schema->resultset('Child'); 1
    $res[1] = 1

    2> my $kevin = $child_rs->find("f69eaf6c-bf77-4b29-9eca-78cda6fd2db7"); 1
    $res[2] = 1

    3> $kevin->name;
    $res[3] = 'Kevin McCallister'

    4> my $p = $kevin->presents; 1
    $res[4] = 1

    5> $p->next->description;
    $res[5] = 'BB Gun'

    6> $p->next->description;
    $res[6] = 'Micro Machines'

    7> $p->next->description;
    $res[7] = 'Blowtorch'

    8> $kevin->name('Kevin McCallister (aka Macaulay Culkin)');
    $res[8] = 'Kevin McCallister (aka Macaulay Culkin)'

    9> $kevin->update; 1
    $res[9] = 1

    10> my $children = $child_rs->search_rs( name => 'Kevin McCallister (aka Macaulay Culkin)' ); 1
    $res[10] = 1

    11> $children->first->child_id
    $res[11] = 'f69eaf6c-bf77-4b29-9eca-78cda6fd2db7'

    12> $children->first->stocking_address->street_address
    $res[12] = '671 Lincoln Ave. Winnetka, Illinois'

    14>

Note that Chestnut was careful not to return any of the DBIx::Class objects (otherwise reply would dump them out, which would be 300+ lines each of too much detail.)

Not Much Coding, So Much Done

With no actual Perl coding Chestnut Emberflakes had managed to get a fully functioning ORM setup where he could quickly prototype any task that the night might throw at him. Wish him luck...the children are counting on him.

Gravatar Image This article contributed by: Mark Fowler <mark@twoshortplanks.com>
